| Fittings

SS 202/304/316/321/409/410/420/431 Our clients greatly appreciate the high strength, dimensional accuracy, high tension power, corrosion resistance, and uniformity of Buttweld Fitting. Numerous commercial, industrial, and automotive industries employ these items. We use the best, most cutting-edge technologies to create these fittings from premium raw materials. Customers may get these items from us in many forms, sizes, and designs depending on what they need.

Specification Details
Pipe Fittings Specifications ASTM A403 / ASME SA403
Pipe Fittings Size Seamless Butt Weld Fittings: 1/2″ – 24″
Welded Butt Weld Fittings: 1/2″ – 24″
Pipe Fittings Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS1560, BS10
Buttweld Fittings Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS (available with NACE MR 01-75)
Buttweld Pipe Fittings Type DN15-DN1200
ASTM A403 SS Buttweld Fitting Connection Welding
Bending Radius R=1D, 1.5D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
ASTM A403 Grade WP Pipe Fitting Size Range ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS (DN6~DN100)
ASTM A403 SS Buttweld Fittings Manufacturing Process Push, Press, Forge, Cast, etc.
Buttweld Pipe Fittings Test Certificates EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc.
SA 403 Pipe Fittings Origin & Mills Indian, Japanese, USA, Korean, European, Ukraine, Russian
Specialized Manufacturer of 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Manufacturing Standards of Stainless Steel Buttweld Fittings

Standard Type / Specification Products / Fittings
ASME B16.9 ASTM A403 Pipe Fittings Factory-Made Wrought Buttwelding Fittings Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Returns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers
ASME B16.28 Short Radius Elbows, Short Radius 180-deg Returns
MSS SP43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub Ends, Caps, Long Radius 180 Degree Returns, Concentric Reducers, Eccentric Reducers
MSS SP75 Long Radius Elbows, 3R Elbows, Straight Tees, Reducing Outlet Tees, Caps, Reducers

ANSI B16.9 Stainless Steel Buttweld Fittings Forms & Availability

Seamless/ Welded 100% Radiography Tested

Products Size

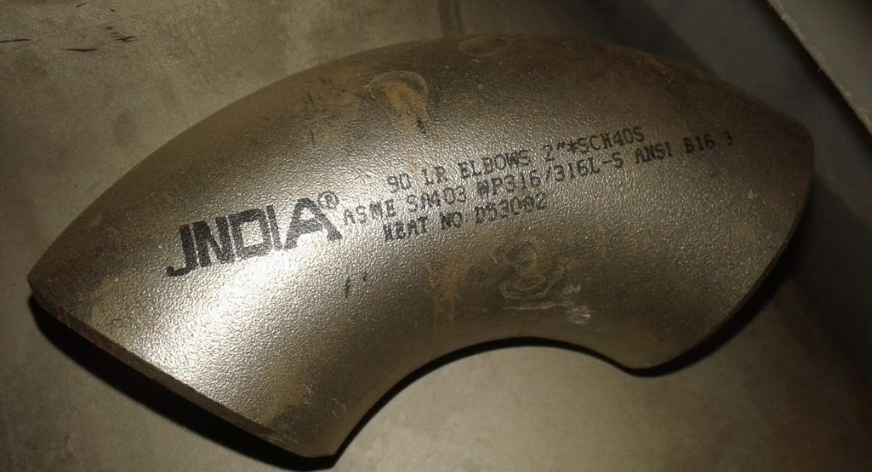

ASTM A403 SS Elbow – Long Radius ASTM A403 SS Stub Ends Sizes 1/2″ – 48″
ASTM A403 SS Elbow – Short Radius ASTM A403 Stainless Steel Cross
ASTM A403 Stainless 3D Elbow ASTM A403 SS 5D Elbow
ASTM A403 SS Reducing Elbow ASTM A403 SS Reducing Cross

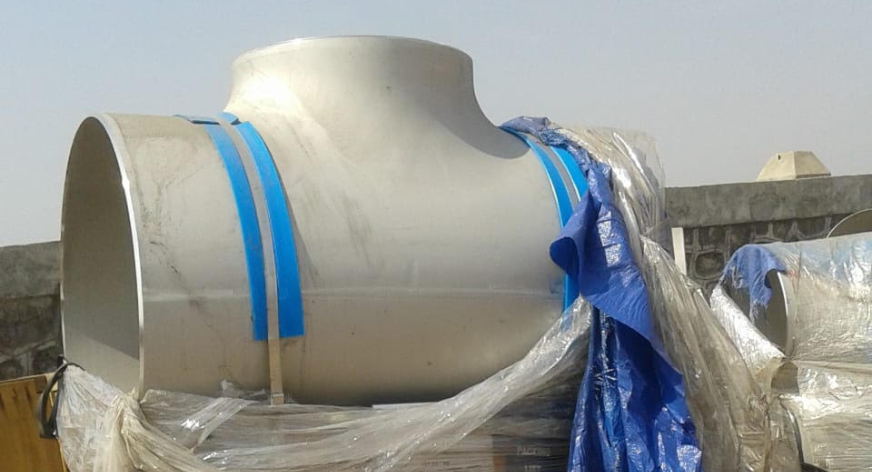

ASTM A403 Stainless 45° Elbow ASTM A403 Stainless Tees
ASTM A403 SS Fabricated Tee ASTM A403 Stainless End Cap
ASTM A403 Stainless Reducer ASTM A403 Stainless Coupling
ASTM A403 SS Concentric Reducer ASTM A403 SS Eccentric Reducer
ASTM A403 SS Pipe Nipple ASTM A403 SS Welded Pipe Fittings
| Stainless & Duplex Steel

Range :
15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS.
Form :
Seamless & Welded Long Radius & Short Radius Elbow 90 Deg , Long Radius Elbow 45 Deg ,Long Radius & Short Radius Elbow 90 Deg , Long Radius Elbow 45 Deg , Long Radius & Short Radius Elbow 180 Deg ( Return Bend ) , Reducing Elbow , Equal Tee , Un Equal Tee, Crosses , Concentric Reducer , Eccentric Reducer , Long Stubend , Short Stubend , Coller , Pipe Cap , Long Radius Bends R =3 D , 5 D , 6 D , 8 D ,10 D & 20 D In 15 Deg ,30 Deg, 60 Deg & 90 Deg And Drawing Bassed Butt Weld Fitting ( Customised ).
Stainless Steel:
ASTM / ASME SA 403 GR WP “S” / “W” / ” WX” 304 , 304L ,304H, 304N , 304LN , 309, 310H , 316 , 316H , 317 , 317L , 321 , 321H , 347 , 347 H Duplex Steel:
ASTM / ASME SA 815 UNS NO.S 31803 , S 32205 , S 32550 , S 32750 , S 32760.

| Carbon & Alloy Steel

Range :
15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS.
Form :
Seamless & Welded Long Radius & Short Radius Elbow 90 Deg , Long Radius Elbow 45 Deg ,Long Radius & Short Radius Elbow 90 Deg , Long Radius Elbow 45 Deg , Long Radius & Short Radius Elbow 180 Deg ( Return Bend ) , Reducing Elbow , Equal Tee , Un Equal Tee, Crosses , Concentric Reducer , Eccentric Reducer , Long Stubend , Short Stubend , Coller , Pipe Cap , Long Radius Bends R =3 D , 5 D , 6 D , 8 D ,10 D & 20 D In 15 Deg ,30 Deg, 60 Deg & 90 Deg And Drawing Bassed Butt Weld Fitting ( Customised ).
Carbon Steel :
ASTM / ASME A 234 WPB , WPC ASTM / ASME A 860 WPHY 42 , WPHY 46 , WPHY 52 , WPH 60 , WPHY 65 & WPHY 70 .
Alloy Steel:
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

| Nickel Alloy

Range :
15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS
Form :
Seamless / Erw / Welded in Round & Square .
Nickel Alloy:
ASTM / ASME SB 163 UNS 2200 ( NICKEL 200 ) ASTM / ASME SB 163 UNS 2201 (NICKEL 201 ), ASTM / ASME SB 163 / 165 UNS 4400 (MONEL 400 ) ASTM / ASME SB 464 UNS 8020 ( ALLOY 20 / 20 CB 3 ), ASTM / ASME SB 704/705 UNS 8825 INCONEL (825) ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600 ) ASTM / ASME SB 167 UNS 6601 ( INCONEL 601 ), ASTM / ASME SB 704 /705 UNS 6625 (INCONEL 625) ASTM / ASME SB 619/622/626 UNS 10276 ( HASTELLOY C 276 ) Copper Alloy :
ASTM / ASME SB 111 UNS NO. C 10100 , 10200 , 10300 , 10800 , 12000,12200, 70600 , 71500 . ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

| Hastelloy

Grades : :
Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Standards :
ASTM / ASME SB 336 & XXS
Types :
Bend (Long & Short)
Elbow (180 Deg., 90 Deg. & 45 Deg.)
Tee (Equal & Unequal)
Reducer (Concentric & Eccentric)
CAP, Stub end (Long &Short)
Nipple (Barrel)

| Incoloy

Grades : :
Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
Standards :
ASTM B366
Types :
Bend (Long & Short)
Elbow (180 Deg., 90 Deg. & 45 Deg.)
Tee (Equal & Unequal)
Reducer (Concentric & Eccentric)
CAP, Stub end (Long &Short)
Nipple (Barrel)

| Inconel

Grades : :
Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Range :
15 NB UP TO 600 NB IN SCH 5S, 10S,10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS
Types :
Elbow 90 Deg
Elbow 45 Deg
Elbow 180 Deg
long/short radius elbows
equal/unequal tees
centric/eccentric reducers
caps
crosses
short/long neck stub-ends

| Monel

Grades : :
Monel 400, Monel k500
Range :
1/2″ NB to 36″ NB
Types :
ong/short radius elbows
equal/unequal tees
concentric/eccentric reducers
caps
cross
short/long neck stub-ends

| Titanium

Grades :
Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 7, Grade 9, Grade 23 Range :15 NB To 600 NB in Sch.:5,10,20,40,80,120,160,XS, XXS.
Types :
Bend (Long & Short)
Elbow (180 Deg., 90 Deg. & 45 Deg.) Tee (Equal & Unequal)
Reducer (Concentric & Eccentric)
CAP, Stub end (Long & Short)
Nipple (Barrel)

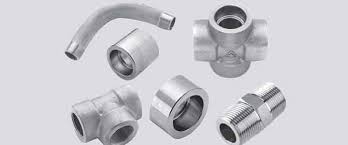

Socketweld & Threaded Fittings

Forged Fitting is high tensile strength, strong, stable, corrosion and rust resistance as well as their high efficiency. We manufacture these forged fittings using premium quality materials in accordance with the quality standards. These products are available in various sizes, shapes and design as per the specific requirements of our clients. Our esteemed clients can avail from us these products at most reasonable prices.

Material Grades
Stainless Steel ASTM A479, A182 – 304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L, 17-4PH & 400 Series
Mild Steel Gr. 1008, 1010, 1015, 1020, CK35, CK45, CK55, CK60 Etc.
Carbon Steel ASTM A105, A350 LF2
Alloy Steel ASTM A182 F5, F9, F11, F12, F21, F22, F91
High Nickel Alloys Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy-20 & Cupro Nickel
Non Ferrous Copper
| Stainless & Duplex Steel

Range :
15 NB UP TO 100 NB IN 2000 LBS , 3000 LBS , 6000 LBS & 9000 LBS , 150 LBS , 250 LBS.
Form :
Socket Weld Fittings : Elbow 90 Deg , Cross , Tee , Elbow 45 Deg , Coupling , Half Coupling & End Cap.
Stainless Steel : :
ASTM / ASME SA 182 F 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H
Duplex Steel: :
ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.

| Carbon & Alloy Steel

Range :
15 NB UP TO 100 NB IN 2000 LBS , 3000 LBS , 6000 LBS & 9000 LBS , 150 LBS , 250 LBS.
Form :
Socket Weld Fittings : Elbow 90 Deg , Cross , Tee , Elbow 45 Deg , Coupling , Half Coupling & End Cap.
Carbon Steel :
ASTM / ASME A105. ASTM / ASME A 350 LF 2 .
Alloy Steel :
ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.

| Nickel & Copper Alloy

Range :
15 NB UP TO 100 NB IN 2000 LBS , 3000 LBS , 6000 LBS & 9000 LBS , 150 LBS , 250 LBS. Form :Socket Weld Fittings : Elbow 90 Deg , Cross , Tee , Elbow 45 Deg , Coupling , Half Coupling & End Cap.
Form :
Socket Weld Fittings : Elbow 90 Deg , Cross , Tee , Elbow 45 Deg , Coupling , Half Coupling & End Cap.
Nickel Alloy:
ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) ,UNS 4400 (MONEL 400 ) , , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 ( INCONEL 601 ) , UNS 6625 (INCONEL 625) , UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ), ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 ).
Copper Alloy :
ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600. ASTM / ASME SB 151 UNS NO. 70600 , 71500 , C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) , ASTM / ASME SB 152 UNS NO C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200.

| Inconel

Grades :
Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Standard :
ASTM / ASME SB 564
Types :
Elbows, Equal/Unequal Tees, Concentric/Eccentric Reducers, Full/Half Couplings, Reducing Couplings, Caps, Cross, Unions, Hex/Reducing/Flash Bushings, Plugs, Nipples, Swage Nipples, Reducer Inserts, Boss, Laterals Street Elbows & Outlets/Branch Connections (Weldolets, Thredolets, Sockolets, Flexolets, Latrolets, Elbolets, Sweepolets, Insert Weldolets, Nippolets, Brazolets, Coupolets)

| Monel

Grades :
Monel 400, Monel k500
Types :
Elbows, Equal/Unequal Tees, Concentric/Eccentric Reducers, Full/Half Couplings, Reducing Couplings, Caps, Cross, Unions, Hex/Reducing/Flash Bushings, Plugs, Nipples, Swage Nipples, Reducer Inserts, Boss, Laterals Street Elbows & Outlets/Branch Connections (Weldolets, Thredolets, Sockolets, Flexolets, Latrolets, Elbolets, Sweepolets, Insert Weldolets, Nippolets, Brazolets, Coupolets)

| Titanium

Size :
1/2” NB to 4” NB
Types :
Titanium Union
Titanium Coupling
Titanium Full Coupling
Titanium Cross
Titanium Forged Elbow
Titanium Hex Nipple
Titanium Plug
Titanium Bushing
Titanium Boss
Titanium Insert
Titanium Adapter
Titanium Socket
Titanium Forged Tee
Titanium Olets
Titanium Weldolet
Titanium Sockolet
Titanium Elbowlet
Titanium Thredolet
Titanium Nipolet
Titanium Latrolet
Titanium Sweepolet
Titanium Half Coupling

| Titanium

Size :
1/2” NB to 4” NB
Material :
Titanium gr1, gr2, gr5, etc.
Product :
Elbow, Tee, Stud End, Reducer
Elbow Type :
45 Deg Elbow, 90 Deg Elbow, 180 Deg Elbow
Tee Types :
Straight Tee, Reducing Outlet Tee
